system 1000
snap lock
The System 1000 metal roof panel is a snap-lock architectural metal roof system anchored with concealed clips. The snap-lock design allows for installation efficiency and weathertight protection. This narrow standing seam metal roof panel can be notched and bent to provide a smooth transition from roof to fascia or mansard.

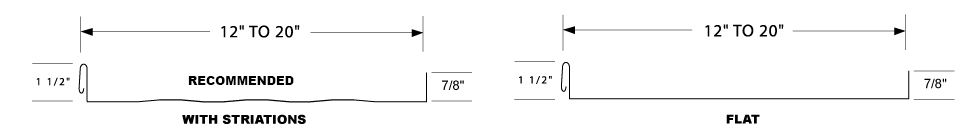

Profiles
PRODUCT DATA
Available Materials
Galvalume (22, 24 gauge)
Aluminum (.032, .040, .050)
Copper (16 & 20 oz)
Available Widths
12” – 20”
Panel Options
Striations (Recommended)
Stiffening Ribs
Flat
Substrate Requirements
Can be installed over Solid Substrate
Minimum Roof Pitch
3:12
Underlayment
Ice & Water Shield (Recommended) or Synthetic Underlayment.
Finish
Kynar 500 (Fluoropolymer PVDF Coating)
Color Guide
Warranties
Testing
Panel Performance
UL 580 Class 90 (Uplift)
ASTM 1592 (Uplift) Aluminum, Galvalume
Can be engineered to current ASCE 7 design standard
Sustainability
Energy Star
All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info ...
LEED
Our product can qualify for the following LEED Credits
- SS Credit 7.2 Heat Island Effect: Roof
- MR Credit 4.1 Recycled Content
- MR Credit 5.1 Regional Materials
Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
